Models of equipment for the production of screws with semi-protection casing is relatively easier to operate compared to models in a protective casing, and more environmentally friendly. Currently, this equipment is the most popular choice among our clients. Cold forging equipment for the semi-protective casing are represented by machines of large and medium size, ideal for the production of high-quality large and microscopic screws used in machinery, automotive, photo-electronics, precision electronics (iPhone), electrical engineering, automotive industry and others. Fasteners of this equipment can withstand shock and vibration.

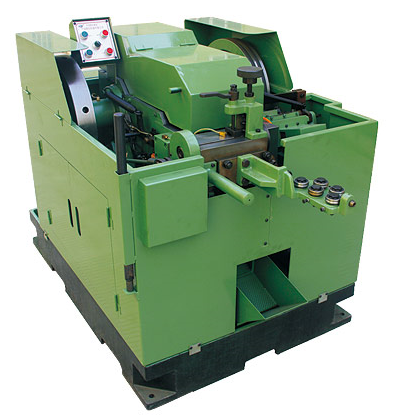

Equipment for the production of self-tappers and bolts
SPECIFICATIONS
|
Model |
Max.blank diameter |
Max.blank length |
The Stroke Length of the slide |
Performance, pcs/min |
Diameter of the core matrix |
Diameter of the parting matrix |
The first punch |
The second punch |
Drive power |
Oil pump |
Options LxWxH, mm |
Net weight, kg |
Gross weight, kg |
|
FA-5S |
0.8-3mm |
24mm |
38mm |
170-200 |
20mm |
13.5mm |
18mm |
18mm |
1LS |
1/4 LS |
1650x1100x1560 |
820 |
880 |
|
FA-5.5S |
2-3.5mm |
28mm |
46mm |
200-250 |
25mm |
13.5mm |
18mm |
18mm |
1LS |
1/4 LS |
1750x1150x1550 |
980 |
1050 |
|
FA-10S |
2-4mm |
32mm |
58mm |
190-220 |
30mm |
15mm |
24mm |
20mm |
2LS |
1/4 LS |
1850x1300x1720 |
1050 |
1160 |
|
FA-15S |
4-5mm |
64mm |
92mm |
150-180 |
34.5mm |
19mm |
31mm |
31mm |
2LS |
1/4 LS |
2100x1100x1320 |
1720 |
1840 |
|
FA-15S |
4-5mm |
76mm |
110mm |
150-180 |
34.5mm |
19mm |
31mm |
31mm |
2LS |
1/4 LS |
2100x1100x1320 |
1860 |
1980 |
|
FA-20S |
4-6mm |
76mm |
124mm |
90-110 |
45mm |
25mm |
36mm |
36mm |
3LS |
1/4 LS |
2400x1400x1500 |
2645 |
2750 |
|
FA-20S |
4-6mm |
102mm |
156mm |
80-100 |
45mm |
25mm |
36mm |
36mm |
3LS |
1/4 LS |
2650x1500x1500 |
3210 |
3360 |
