THREAD ROLLING MACHINE

THREAD ROLLING MACHINE

Initially blanks of self-tappers and screws are put into the hopper. From the hopper via the vibration conveyor mechanism and the anchor mechanism blanks come into threading zone. However, they are strictly oriented towards the working elements. Working elements are flat dies. They are moved towards and parallel to each other and perpendicular to the axis of the self-tappers or screws, wherein the dies are pressed tightly to the rod product. Dies are made on basic parameters of thread fasteners.

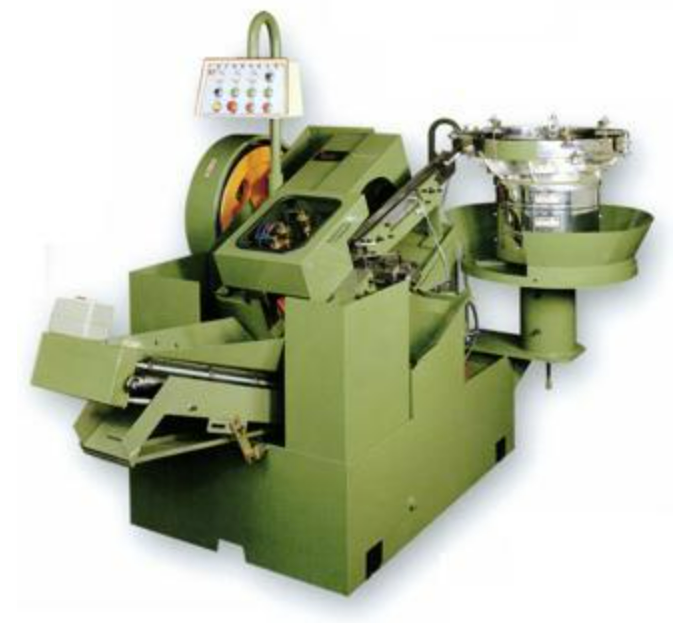

Model AS-20TH

Max. blank diameter                               3-6 mm
Max.blank length                                     75 mm
Performance                                            150-200 pcs./min.
Size of the dice                                        25x83x90~10525x83x100~115
Power of main engine                            7 1/2 hp
Machine dimensions,LxWxH               2100x1780x1660 cm
Net weight                                                1775 kg
Gross weight                                            1950 kg
